Low Insertion Loss Mechanical Optical Fiber Converter Switch Dual 1x2 Bypass

Brand Name : HJY

Model Number : HJY-FSW-D1X2B-SM

Certification : CE, ROHS, FCC ISO9001

Place of Origin : China

MOQ : 1pc

Price : Please send inquiry to sales@huajiayu.com

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100,000 pcs

Delivery Time : 3~7 working days

Packaging Details : Neutrial Packing or with OEM LOGO

Switching Method : Optical

Repeatability : ≤ ±0.02dB

Oem : available

Fiber Type : 50/125 62.5/125 9/125

Control Type : non-latching or latching

Working Mode : Automatic gain control

Contact Now

High Reliability and Low Insertion Loss Dual 1x2 Bypass Mechanical Optical Switch for Optical Communication

HJY' Dual1x2 Bypass fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The Dual 1x2 Bypass Mechanical Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.

Features

Application

·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching

·Metropolitan Area Network

·R&D in Laboratory

·System Monitoring

·Configurable OADM

Performance

Parameters		HJY-FSW-D1X2B-SM
Wavelength Range	nm	850±40/1300±40	1260～1650
Testing Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	≤1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥30 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power supply	v	3.0 or 5.0
Lifetime	time	≥3×10⁷
Switch Time	ms	≤8
Transmission Power	mw	≤500
Operation Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Relative Humidity	%	5~95
Weight	g	16
Dimension	mm	(L)27.0×(W)12.6×(H)8 (±0.2mm) customization is available.

Pins

Control Model	Optical Path		Electric Drive				Status Sensor
D1×2B	Light Pin		1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	1-2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-P3	1-3	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1-P2	1-2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3	1-3	--	--	--	--	Close	Open	Open	Close

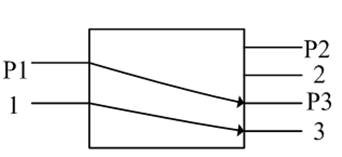

Optical Route

State A	State B

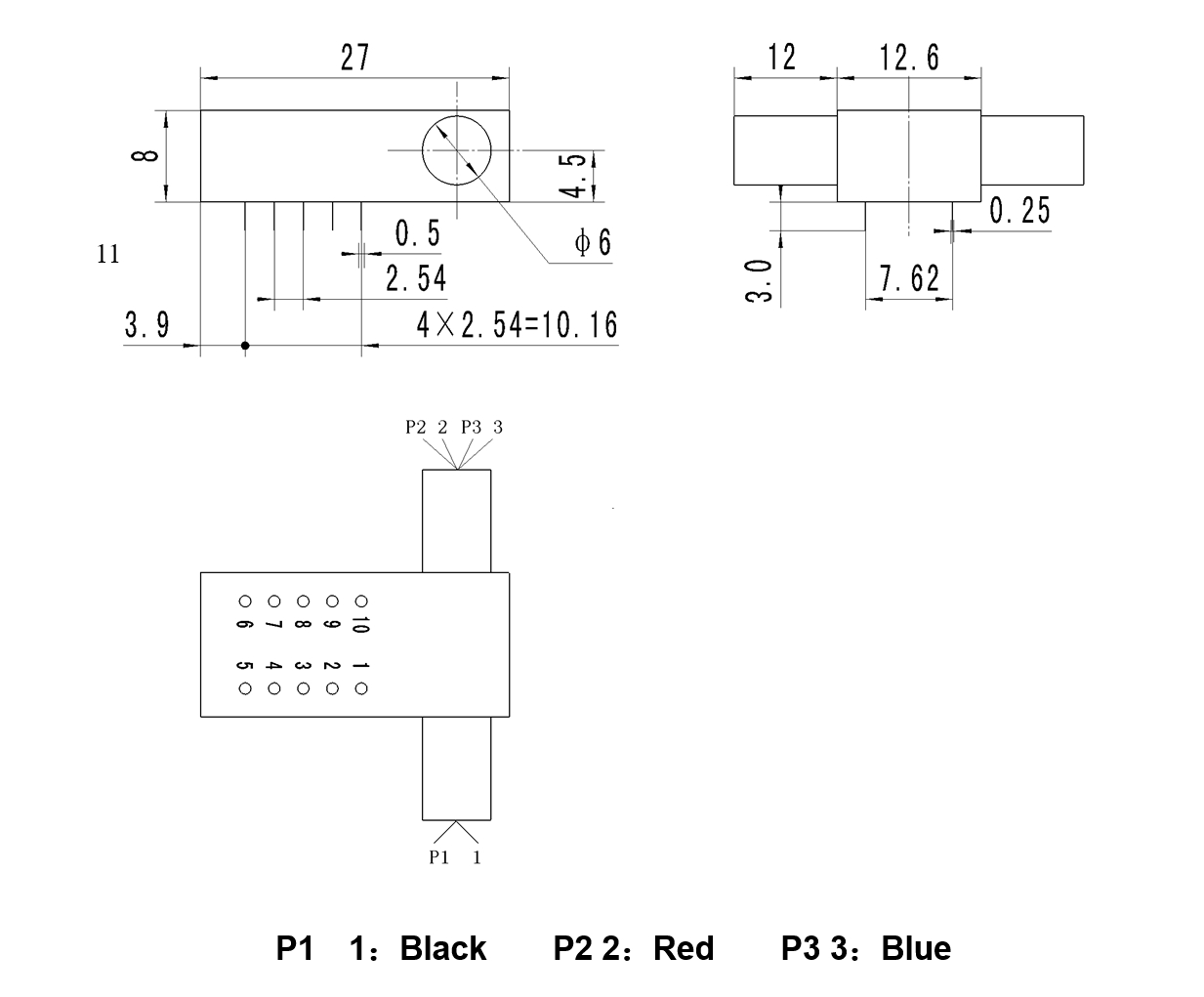

Dimensions

Low Insertion Loss Mechanical Optical Fiber Converter Switch Dual 1x2 Bypass

Ordering Information

HJY-FSW	-D1X2B-	-Wavelength-	-Switch Type-	-Voltage-	-Fiber Type-	-Package-	-Fiberlength-	-Connector-
		1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610=A 1310/1550＝9 850=8 Special＝0	Latching＝1 Non-latching＝2 MINI Latching＝3 MINI Non-latching＝4 Special＝0	3V=3 5V=5 Special＝0	SM28=1 50/125=5 62.5/125=6 Special＝0	Bare fiber=1 900um tube=3 Special＝0	0.25m=1 0.5m=2 1.0m=3 Special＝0	None=1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special＝0
